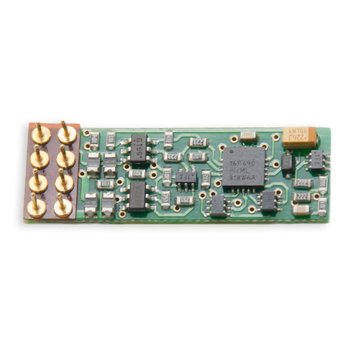

Digitrax – DN146IP – N & HO DCC Decoder, Integrated DCC Medium Plug, 1 Amp

Description

Fits Many DCC-Ready N and HO Scale Locomotives

• Size: 1.158” x .386” x .115”
• 29.43mm x 9.81mm x 2.98mm
• N Scale
• 1.0 Amp/1.5 Amps Peak

FX3 Function outputs for prototypical lighting effects and on/off control:

• Constant Brightness Lighting with directional or independent control.
• Optimized selectable LED or incandescent lamp operation Realistic Effects like Ditch lights, Mars lights, strobes, and many more
• Configurable Pulse Function available on all function outputs.
• FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
• Function Mapping for custom function setup.
• Master Light Switch turns off all lights & functions with one keystroke.
• Advanced Consist Function Controls.

Digitrax LocoMotion® System-Your locomotives look like the real thing.

• The Digitrax LocoMotion System makes them run like the real thing, too!
• Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
• Torque Compensation.
• 128 Speed Step operation (14 or 28 steps can also be used).
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• Switching Speed feature for easier and faster access to yard speeds.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control.

– Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
– 2 Digit and 4 Digit Addressing.
– Basic, Advanced & UniVersal Consisting.
– SuperSonic motor drive for silent operation.
– Direct mode programming.
– Decoder Reset CV with or without speed table reset.
– Transponder Equipped ready for transponding on your Layout.
– Motor Isolation Protection helps prevent damage to your decoder.
– Automatic Analog Mode Conversion when running on DC layout.
– Decoder Lock for individual programming of multiple decoders in one loco.
– Digitrax “No Worries” Warranty.
