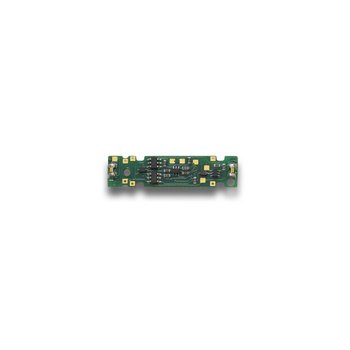

Digitrax – DZ123M0 – Z DCC Decoder, Microtrains GP-35/GP-9, 2-Function, 1 Amp

Description

Features:

This 2 function FX3 decoder is designed to fit MicroTrains Z scale GP-35 locos.

• 128 Speed Step operation (14 or 28 steps can also be used)
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control
• SuperSonic™ motor drive for silent operation.
• FX3 Function outputs for prototypical lighting effects and on/off control:
• Constant Brightness Lighting with directional or independent control
• FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
• Function Remapping for custom function setup.
• Decoder Lock equipped
• All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
• Decoder Reset CV with or without speed table reset.
• Motor Isolation Protection prevents damage to your decoder.
• Basic, Advanced & UniVersal Consisting
• 2 Digit and 4 Digit Addressing
• DCC Compatible
• FCC Part 15, Class B RFI compliant

Note: DZ123M0 HAS Scaleable Speed Stabilization (Back EMF)
