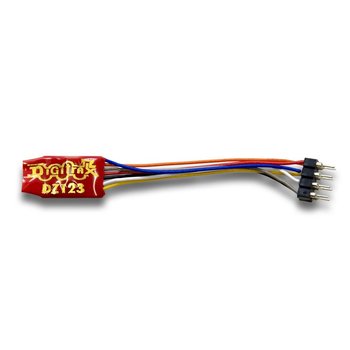

Digitrax – DZ123PS – Z DCC Decoder, 1.2″ Wire, 2-Function, 8-Pin, 1 Amp

Description

Digitrax LocoMotion® System
Your locomotives look like the real thing. The Digitrax LocoMotion™ System makes them run like the real thing, too!

• Torque Compensation for smooth as silk silent operation.
• 128 Speed Step operation (14 or 28 steps can also be used).
• Momentum with acceleration and deceleration.
• Normal Direction of Travel is user selectable.
• Switching Speed feature for easier and faster access to yard speeds.
• 3 Step Speed Tables set start, mid and max voltage for custom control.
• 28 Step Speed Tables with 256 level resolution for precise control.
• SuperSonic™ motor drive for silent operation.
• FX3 Function outputs for prototypical lighting effects and on/off control.
• Constant Brightness Lighting with directional or independent control.
• Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
• FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving.
• Function Remapping for custom function setup.
• Master Light Switch turns off all lights & functions with one keystroke.
• Decoder Lock equipped
• Transponder equipped ready for transponding on your layout.
• All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
• Decoder Reset CV with or without speed table reset.
• Motor Isolation Protection prevents damage to your decoder.
• Basic, Advanced & UniVersal Consisting
• 2 Digit and 4 Digit Addressing
• Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage
• DCC Compatible
• FCC Part 15, Class B RFI compliant
