Railfan Models HO Boeing B777 Covered Well Car


Please note: Pictures are representations; some road numbers may not be shown.

For a comprehensive list of features, please visit the manufacturer’s website.

Out of stock

SKU: RFMB777 Category: Tag: Railroad Short Name:


Boeing had 16 well cars with canopies built to safely transport sections of the 777 aircraft built in Wichita, Kansas to the final assembly plant in Everett, Washington.  These cars have been seen on BNSF and MRL trains since 1993 and will continue to be used as long as the B777 remains in production.  With the new 777X in the testing phase, production is likely to continue for the forseeable future.  Four more cars were built in 2012 to increase capacity, bringing the total number of cars in use to 20.

Everything about this car is BIG.  The top of the canopy is 20 feet and 1 inch above the railhead, and the width of the car is 12 feet 8 inches.  More information on this car and the B777 components carried can be found in the book Shipping Planes on Trains Volume 4 by Andrew Klamka.

All of the numerous features if this car are captured in our HO scale model.  Minimum radius curve is 22” but keep in mind this is a very wide car and it will not always meet the NMRA clearance standards.  A good rule-of-thumb is if an 89′ autorack car runs fine on your track, then this car will most likely run as well.

Check out the announcement article by Tony Cook in the August 2020 issue of Model Railroad News.

We are selling the fully assembled version of this car.  If you are interested in purchasing a kit they can be found at the Raifan Models website here. http://www.railfanmodels.com/products/boeing-777-covered-well-car/

Fully Assembled:

  • Highly detailed 3D printing on a commercial 3D printer
  • Assembled by hand which will make it take time for orders to be fulfilled


  • Strong polymer plastic body and detail parts – 63 individual parts
  • Full brake system, piping, and ladder details

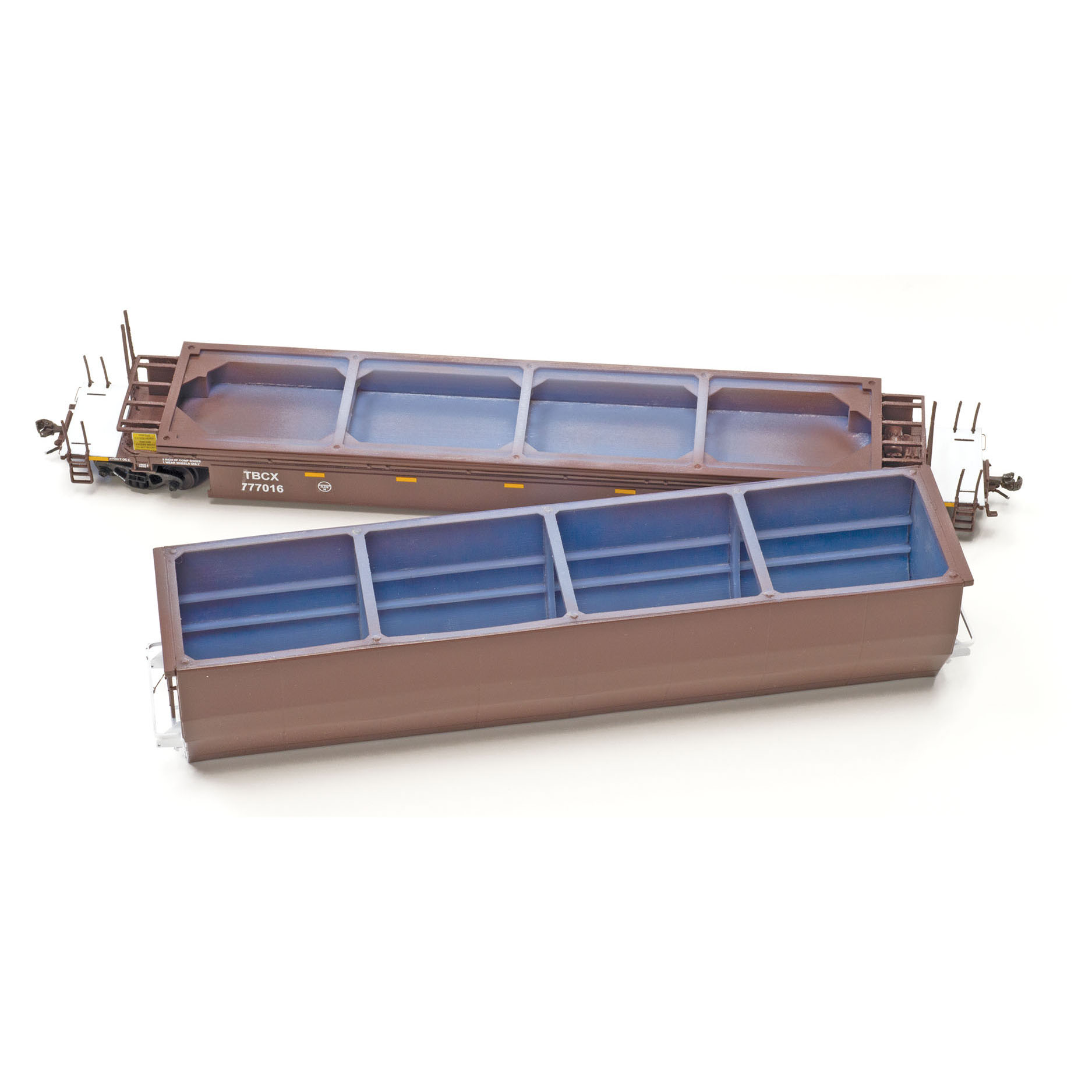

  • Both Well Body types offered (specific to road number)
  • Kadee Trucks with 33″ wheels and mounting screws
  • Kadee “Scale” Whisker ® couplers with mounting screws
  • Stainless Steel Grab Irons and Support Brackets
  • Etched metal Walkways and Coupler Cut Levers
  • Circus City Decals with 16 road numbers available
  • Reflective tape from Smokebox Graphics
  • Box with custom foam inserts to store and transport your assembled model safely
  • Tru-Color Paint
  • Painted Wheelsets
  • White trim paint on brake pipe handles and coupler cut levers
  • All decals and reflective tape applied

Additional information

Weight 1.5 lbs
Dimensions 14 × 4 × 4 in
