Description

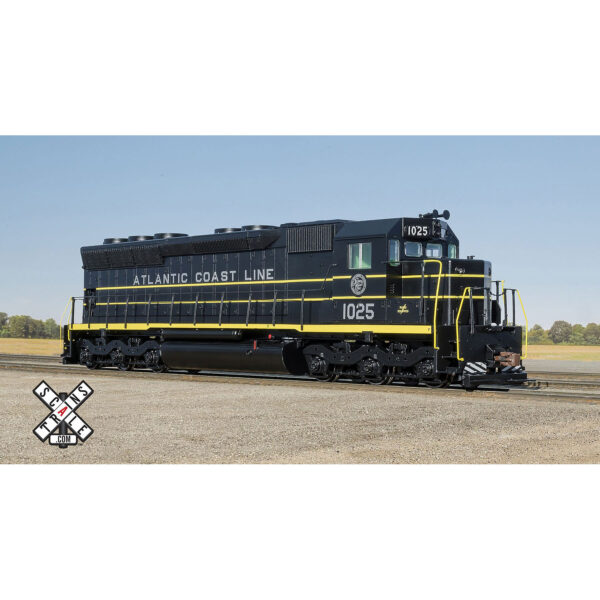

Railroad Short Name: ACL
Locomotive Features:
- Era: 1966 to late 1960s
- Series 1024-1033, built 12/66
- Fully assembled
- Multiple road numbers
- Directional LED headlights
- Printed and LED lighted number boards
- Front and rear full-width MU catch trays with footboards
- Front and rear early small deck extension with dropsteps
- Short stepwells with see-through steps
- Scale sectioned “early” (“X”) pattern walkway treadplate
- Front and rear early small deck extension
- Pivoting front and rear drop steps
- Rectangular walkway lights (non-operating)
- Latched battery box doors with narrow louvers
- Cab sub-base doors with stiffener rib
- 81” low short hood with plated-over handbrake location
- Standard EMD high headlight in face of short hood
- “35-Line” cab with standard front windshields
- Finely-detailed cab interior
- Leslie RS-3L-R horn mounted on number board housing
- Standard electrical cabinet seam
- No ECAFB
- Late (ribbed) blower duct housing
- Inertial air intake grilles without drip rails
- Separately applied standard-height dust bin and exhaust stack
- Early (short forward taper) extended-range dynamic brakes
- See-through dynamic brake intake grilles
- “Chickenwire radiator grilles with rectangular-pattern mesh screens
- Finely-molded 48” spiral-grille dynamic and radiator fans
- Long walkway duct with three short stanchions
- Semi-scale coupler buffer equipped with semi-scale Type “E” knuckle couplers
- End handrails with top-and-end mount stanchions
- Short “nub-bottom” pilot face
- Accurately profiled underbody frame rail with separate bolster webs
- Tall jacking pads with holes (early)
- Sill-mount EFCO button
- Frame-mounted steel bell – confirm
- 4,000-gallon fuel tank with single fuel filler, single vertical fuel gauge, and round dial fuel gauge per side
- Detailed Flexicoil-C trucks with low-mounted brake cylinders and Hyatt bearing caps
- Motor with 5-pole skew-wound armature
- Balanced dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible even under magnification
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
- Detail kit available separately: wire grab irons, trainline hoses, MU hose clusters, uncoupling levers, windshield wipers, and more (SXT81254)
- Minimum radius: 18”
- Recommended radius: 22”
Sound Features:
- ESU LokSound 5 DCC & Sound decoder with “Full Throttle” feature
- Oval speaker
- Accurate EMD 20-645E3 prime mover and auxiliary sounds
- Operates on both DC and DCC layouts (Some sound and lighting functions included with DCC & sound-equipped locomotives are not operable using DC)
