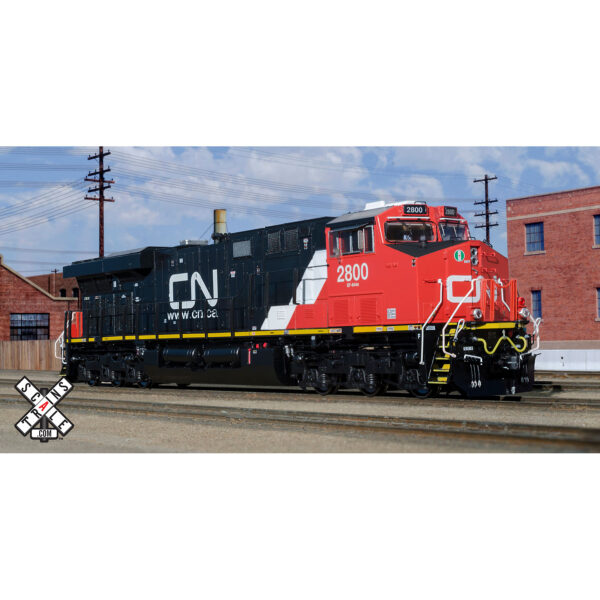

Description
Railroad Short Name: CN
Road Number Features:
- Era: 2012 to present
- Series 2800-2834, built 9/12 – 2/13
- Designated EF-644n
- Operating LED front, rear, and side walkway lights*
- Operating LED front and rear deck-mounted ditch lights**
- Operating LED ground light on left side of locomotive*
- Operating LED red DPU marker lights*
- See-through Canadian-style “slotted” stepwell steps
- Walkway with front anticlimber and see-through grating; without support brackets
- Rear Canadian “rock pilot”
- Front and rear raised pilot-mounted Multiple Unit (MU) receptacles
- Front dummy Multiple Unit (MU) receptacles mounted to pilot face
- Single trainline hose with silver gladhand
- Rear wide-spaced dual dummy Multiple Unit (MU) receptacles
- Sill-mounted battery charging receptacle
- Narrow profile end handrails
- Late handrails with U-bolt caps and narrow rear most stanchion on long side rails
- Front nose headlight
- Front straight grab irons mounted directly to the nose
- Right nose door without window
- Front high-mounted (cab) numberboard housings
- Late cab without barrel bolt latches on subbase doors
- Left side under cab front access bolted X panel, rear door with square corrugated grille
- Dual cab side blue flag holder
- Tall mirror mounted in front of sliding cab side windows on both sides; additional small mirror on right side
- Cab roof octagonal antenna dome, single STI-CO PTC antenna, and small button dome antenna
- Sand box clean out door with knuckle buster latch
- Small hinged inverter cabinet door
- Left side dynamic brake cab detail, X panel front and dual blower dynamic brake with flush exhaust
- Right side dynamic brake cab detail, X panel door, small grille, door with grille and door with grille
- Short right side air intake grille
- Left side aux cab detail, 3 medium doors – latches on #2 door and long aux cab filter box door
- Right side aux cab detail, 4 doors with latches on #1 & #4 doors
- Lost wax brass cast Nathan AirChime K5HLR2 horn mounted on engine cab roof
- ES44 style engine cab doors: latched first door in each set of three
- Left side exhaust cab doors: latched last door in set of three
- Flush heat exchanger housing
- Raised radiator grille
- Right side radiator cab: fourth and fifth have short grilles
- Flat water fill box with sight glass
- AEI tag mounted to right sidesill
- Dual Graham-White (Prime) 075 air filters
- Graham-White 994-500 air dryer
- GE Hi-Ad trucks with separately applied brake cylinders, air plumbing, and rotating bearing caps
- 5,300-gallon fuel tank with internal waste retention tank, digital fuel gauge, vertical fuel gauge, and round fuel gauge
- Dual fuel fills per side with rear fill “blanked”
- Angled top left side fuel tank top box
- Short sump drainpipe
- EOT basket mounted on left rear of fuel tank
- Semi-scale coupler buffers equipped with die-cast metal semi-scale standard Type E knuckle couplers
- Color matched to TruColor Paint color TCP-010 Black
Locomotive Features:
- Fully assembled
- Multiple road numbers
- Directional LED headlights
- Printed and LED lighted number boards*
- GE “nub” tread plate on walkways
- Detailed cab interior with separate floor, rear wall, seats, control stand, and grade crossing camera
- Tinted cab side windows
- Etched metal see-through dynamic brake intake grilles with blower motors visible inside
- See-through dynamic brake exhaust
- Separate exhaust stack
- 22 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Accurately profiled frame with separately applied plumbing and cabling
- Factory-applied wire grab irons, snowplow, spare knuckles, 3-hose MU clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel, and more.
- All-wheel drive
- All-wheel electrical pick-up
- Dual flywheels
- Motor with 5-pole skew wound armature
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22
DCC & Sound Ready Features:
- Operate using DC
- DCC ready with 21-pin connector
