Description
Railroad Short Name: UP
Features:
- Era: 2013 to present
- Series 1550 to 2052 (SD40N mixed from various sources); ex-UP 3335 to 3399, built 2-5/1977

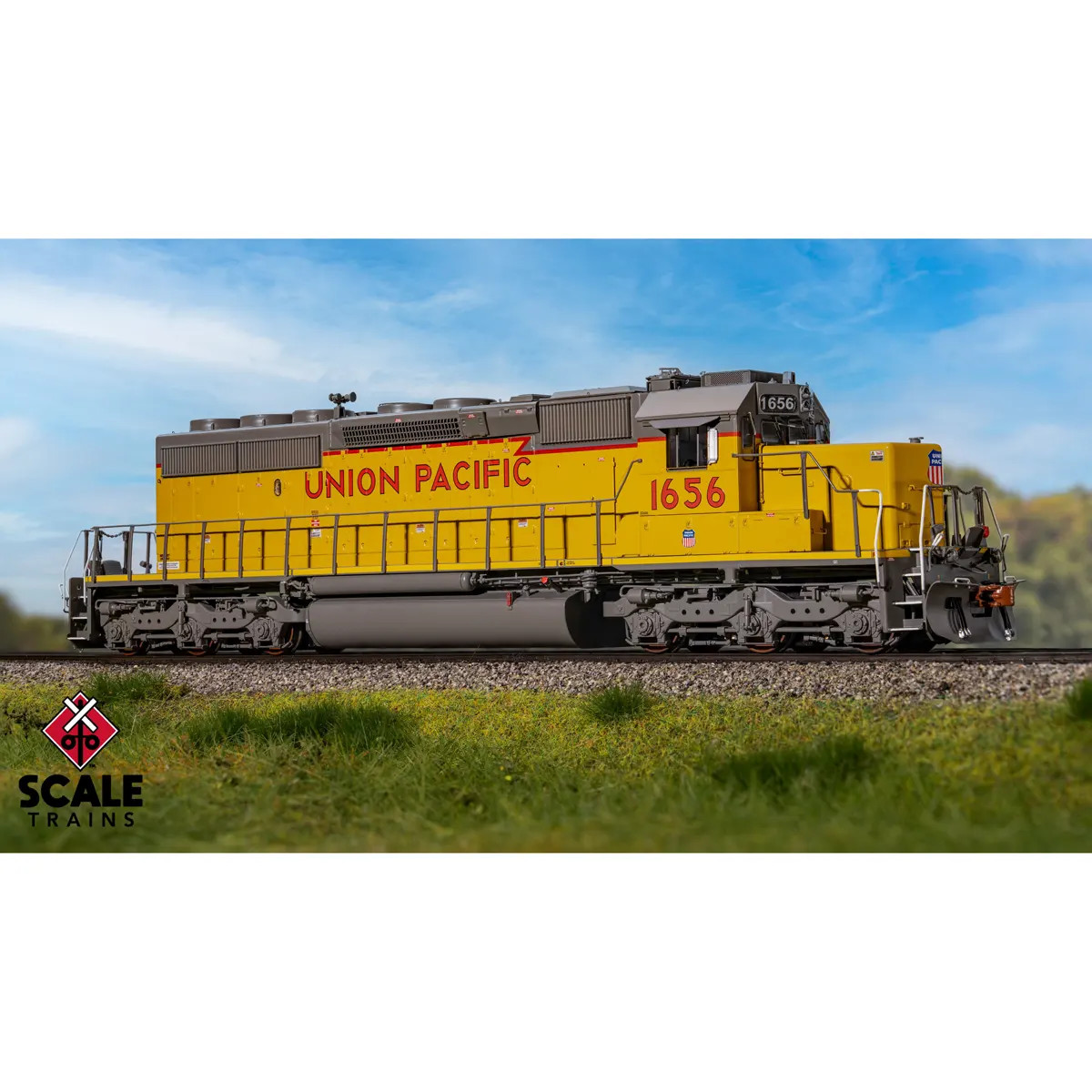

- Road number 1656
- Small Sinclair Excalibur “ice skate” antenna (Locotrol/EOT) mounted on right front on numberboard housing
- Stand from removed horn mounted center front on numberboard housing
- Road number 1838
- Small Sinclair Excalibur “ice skate” antenna (Locotrol/EOT) mounted center front on numberboard housing
- Fully-assembled
- Multiple road numbers
- LED-illuminated ground lights on both sides of locomotive*
- LED-illuminated front and rear pilot face mounted ditch lights**
- LED-Illuminated rectangular walkway lights mounted between front and rear sanding valve doors and round walkway light, aft of raised walkway duct*
- Printed number boards with separately controlled backlit LED-illumination*
- Dayton-Phoenix 2807000 cab roof mounted HVAC
- Late SP/UP-style pilot plow with grab irons, Rear multiple unit (MU) hose catch baskets
- 3-hose multiple unit (MU) hose clusters with silver gladhands
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- Front angled, rear straight uncoupling levers with loop handles; two inner and two outer mounting brackets
- As-delivered pilot faces with reinforced lifting holes
- Deck mounted multiple unit (MU) receptacles
- “Tall” stepwells with see-through steps
- Front and rear early small deck extension
- Handrail set with inward facing end rail mounting brackets and chain; break-away stanchions on both ends
- Front and rear standard drop steps
- Scale sectioned treadplate detail on walkways
- 116” “snoot” low short hood with wheel handbrake, stand-off equipment access door
- Round vent retrofitted to right side of low hood
- Latched battery box doors with narrow louvers and lift-off hinges
- Late cab sub-base doors with lift-off hinges
- Standard EMD headlight in number board housing
- Dash-2 cab with replacement UP SD40N side window panels
- Detailed cab interior with separate floor, rear wall, seats, and standard AAR control stand
- Sliding cab side windows
- Tall mirrors mounted fore of cab side windows on both sides of cab
- Standard EMD sunshades with long sunshade tracks
- Lost-wax brass cast Nathan AirChime K3HAR2 horn with shower caps on riser relocated to rear of dynamic brake housing
- JEM Communications PTC antenna array cabinet mounted to rear of cab roof, “Whip” antenna mounted on right side of cab numberboard housing
- Accurate hood door and long hood detail
- Early electrical cabinet “zig-zag” seam, further from rear of cab
- Late welded ECAFB
- Intermediate inertial air intake grills with top drip rail
- Standard turbo exhaust stack
- Accurately-profiled extended-range dynamic brakes with batten strip
- See-through dynamic brake intakes with resistor grid detail
- Corrugated radiator intake grilles
- See-through standard 48” radiator fan housings with fan blades visible inside
- Drop grab radiator fan grab iron
- Underbody frame rail with separate plumbing and traction motor cables
- Detailed HT-C trucks with Hyatt bearing caps, late center axle snubbers, sanding lines and brackets, and D-77 traction motor and air duct details
- Rust-color painted wheelsets
- Dimensionally accurate truck centers
- Speed recorder mounted to first axle on left front
- Rearward facing handbrake chain mount for HTC trucks
- Tall jacking pads without holes (intermediate)
- Spare knuckle holders on rear pilot face
- Forward engineer’s side sidesill notch
- Sill-mount EFCO
- Frame-mounted steel bell
- Graham-White 975-100 “Twin-Tower” air dryer assembly; retrofitted to rear of air reservoir on fireman’s side
- Graham-White (Salem) brand 824-170 primary centrifugal air filter (accordion-style)
- 4,000-gallon fuel tank with fuel fillers, vertical gauges, vertical breather pipe, and waste retention tank
- Factory-applied wire grab irons, wire lift rings, windshield wipers, trainline hoses with silver gladhands, sand hatch covers, and much more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible even under magnification
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
- Minimum radius: 18”
- Recommended radius: 22”
DCC Ready Features:
- Operates on DC layouts
- DCC ready with 21-pin connector
Reviews
There are no reviews yet.
