Soundtraxx – 885032 – Tsunami 2 TSU-KN1 Kato N scale 4 Function LED friendly / for E, F-units, F40ph, PA and P42 – KIT

$128.00

Please note: Pictures are representations.

For a comprehensive list of features, please visit the manufacturer’s website.

In stock

SKU: STX885032 Category: Tags: , Railroad Short Name:

Description

The Tsunami2 TSU-KN1

Tsunami2 meets N-Scale! The TSU-KN1 is our first plug-and-play Tsunami2 N-Scale decoder and installation kit. Finally, you can get the Tsunami2 features you have been wanting in your N-Scale locomotives! The new TSU-KN1 is designed to fit into Kato N-Scale E, F-units, F40PH, PA and P42 locomotives. Get an easy install and the amazingly realistic sounds plus the features that all Tsunami2 decoders have to offer.

DYNAMIC DIGITAL EXHAUST
For added realism, you’ll love our reactive Dynamic Digital Exhaust (DDE) feature. When your locomotive is traveling across flat terrain and simply maintaining speed, you will hear your locomotive chugging along. But, when the locomotive encounters a grade and the engineer applies more throttle to get the train up the hill, the engine sounds will automatically react and reflect the increase of power needed to crest the hill. DDE accomplishes this by calculating the changes in strain or load on the motor and adjusting the exhaust to appropriately simulate the work the engineer would be doing to the throttle of the engine. This gives Tsunami2 the ability to create the most realistic experience possible.

HIGH QUALITY SOUND LIBRARY
Our large selection of high quality sound effects include:

  • 8 Prime Movers
  • 14 Bells
  • 40+ Airhorns
  • Additional couplers, dynamos, cab chatter and more!

ADDED REALISM
Additional realism can be simulated by adding functioning locomotive and train brakes, injectors, power reverse, firebox flicker and more.

EASY INSTALLATION

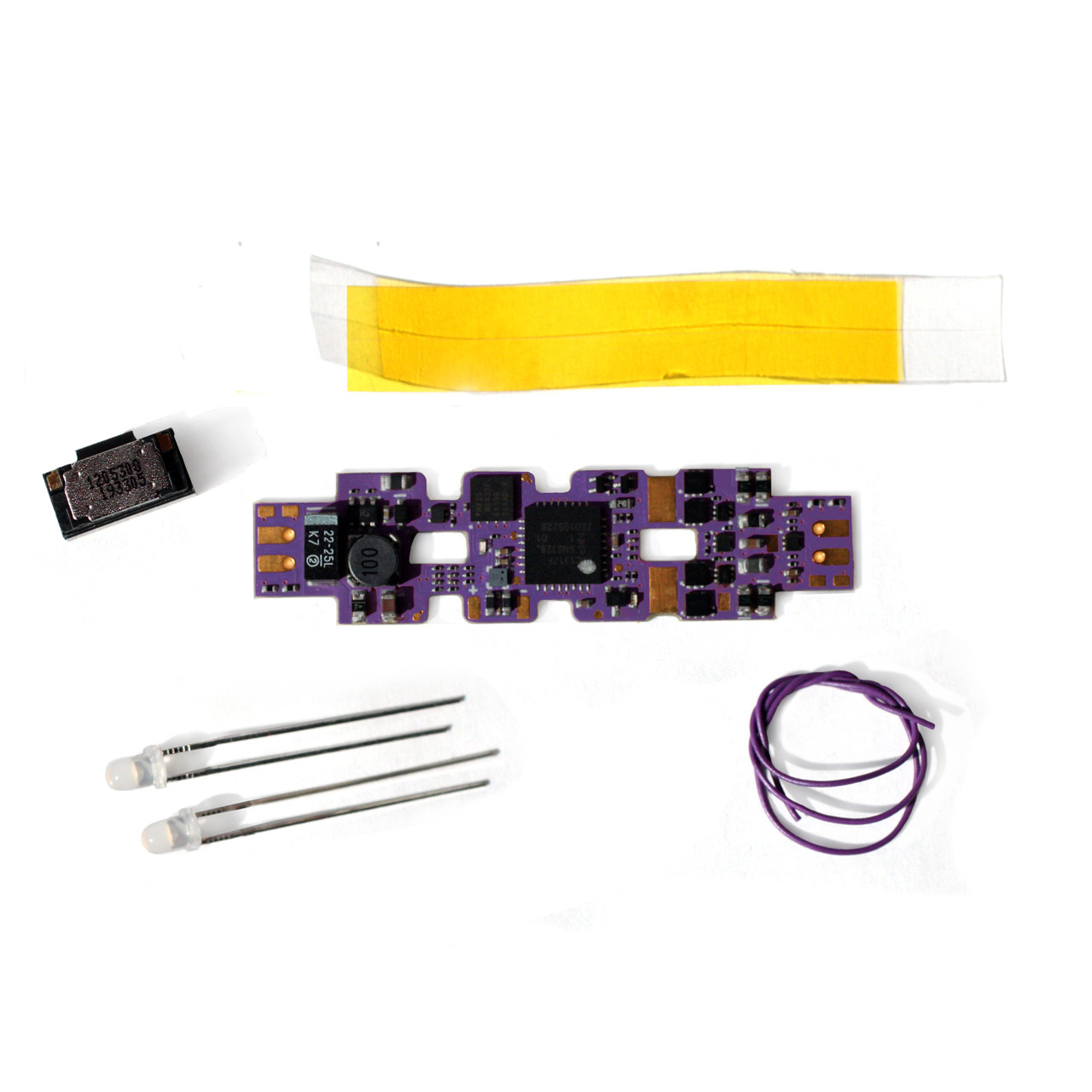

The TSU-KN1 comes with a complete installation kit ensuring an easy install. Also note that the TSU-KN1 is designed with 4 LED friendly function outputs making external resistors unnecessary! Installation kit includes:

TSU-KN1 Decoder
Mini Cube 3 Speaker and Baffle
Speaker Wire
Kapton Tape
2 Sunny White LEDs
This decoder can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.

Dimensions: 55 x 13.8 x 3.2mm
Max. Motor Stall Current: 500mA
Max. Function Current: 100mA (each output)
Function Outputs: 4
Audio Amplifier: 1 Watt, 8-Ohm Load
DCC Track Voltage: 7V – 22V
Sound Channels: 16

Additional information

Weight 0.15 lbs
Dimensions 7 × 5 × 0.3 in
