Description
Railroad Short Name: CBRY
Prototype Specific Information
In 1966, EMD updated its locomotive catalog with entirely new models, all powered by the new 645 diesel engine. The SD39 had 2,300 hp from a turbocharged V12. The SD39 had the smallest prime mover of the SD locomotives in the EMD catalog. 54 were built for American railroads.
CBRYÂ Features:

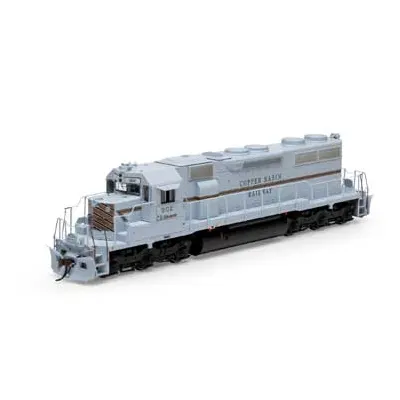

In the late 1980’s, Copper Basin RY picked up some surplus Ex-SP SD39’s for their copper concentrate trains in AZ. When purchased, they were kept pretty close to the old SP-specs other than the removal of some of the oscillating lights and the bell being moved to the long hood. They were repainted into this unique copper and grey paint scheme. Our models depict these details such as: front and rear large plows, rear brake wheel, P-3 Horns, FARR grilles, removed red warning lights, and road number-specific trucks and headlight placement.
Road Number Specific Features:
#302
- Ex-SP 5321
- high-mounted brake cylinder trucks
- relocated headlight
- unique front and rear stripe pattern, P-3 horn with mis-matched bells
- removed red warning lights
- modified L-window cab
- whip antennas
#303
- Ex-SP 5323
- low-mounted brake cylinder trucks
- unique front and rear stripe pattern, P-3 horn
- removed red warning lights
- modified L-window cab
- whip antennas
- white painted roof #304
#304
- Ex-SP 5324
- low-mounted brake cylinder trucks
- unique front and rear stripe pattern, P-3 horn
- removed red warning lights
- modified L-window cab
- whip antennas
- white painted roof
Locomotive Features:
- Separately applied air tanks
- Coupler cut levers
- Rubber MU hoses
- Photo-etch stainless steel windshield wipers
- Fine scale handrails
- Non-sound version features 21-pin NEM DCC plug
- See-through dynamic brake and radiator fans
- Curved radiator fan grab iron
- Exhaust stack
- Frame-mounted bell (unless noted)
- Detailed 4000 gallon fuel tank (unless different capacity is noted)
- Flexicoil-C trucks with high or low brake cylinders (per prototype)
- McHenry® scale knuckle spring couplers
- See-through cab windows
- Bi-directional LED lighting
- All-wheel drive with precision gears for smooth and quiet operation
- All-wheel electrical pickup
- 5-pole motor with flywheels and multi-link drivetrain for trouble-free operation
- Wheels with RP25 contours operate on all popular brands of track
- Painted and printed for realistic decoration
- Highly-detailed, injection molded body
- Minimum radius: 18″
- Recommended radius: 22″
Sound Features:
- Onboard Econami sound decoder by Soundtraxx
- Engine startup sound sequence
- Dynamic brake sound or Non-Dynamic Straight to idle on F4
- Extra prime mover and horn sounds exclusive to Athearn
- Sounds recorded from a real EMD 12-645E3
- Multiple bell sound files user configurable via Configuration Value (CV)
- Sound units operate in both DC and DCC
- Full DCC functions available when operated in DCC mode
- Engine, horn, and bell sounds work in DC
- All functions NMRA compatible in DCC mode
- Excellent Slow speed control
- Current Keeper ready with on board expansion plug
- Operating lighting functions with F5 and/or F6
- Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
- Many functions can be altered via CV changes
